SE 501

MULTI-STAGE INDIRECT HEAT & DRY DECOMPOSITION PROCESS :

SE-501 is made for use in medium-scale restaurants, Mid-sized apartments, fast- food franchises, Canteens and food preparation facilities in institutions and cafeterias. It has a capacity to process 25 to 50 kg input of food waste in a batch. The process takes 12 to 15 Hours for completion. The equipment is very compact in size and built in Stainless Steel for corrosion resistance and durability.

Specifications

Model	SE-501
Processing method	Multi-stage indirect heat & dry decomposition process
Design type	Stand-alone, portable
Input Capacity/Batch/Cycle	50 Kg per cycle/batch
Processing time	12-16 hours
Power consumption	2.8 Kw
Dimension(WDH in mm)	1150900950
Weight	300 Kg
Tank Volume	3 Cu. Feet
Material	Stainless Steel
Average Reduction Rate	83 – 90%
Tank Volume	3 Cu Feet
Safety Feature	The internal impeller automatically stops when the hopper door is opened
Odour Treatment	Integrated deodorisation and foul odour control
Installation	No need for special installation or exhaust ventilation
Treatable Items	Food waste and all compostable disposables
Untreatable Items	Metal waste, plastic, glass, petrochemicals..
Automation Controls	Fully Automatic PLC Controlled
Warranty	1 year manufacturers Standard warranty

CASE STUDIES

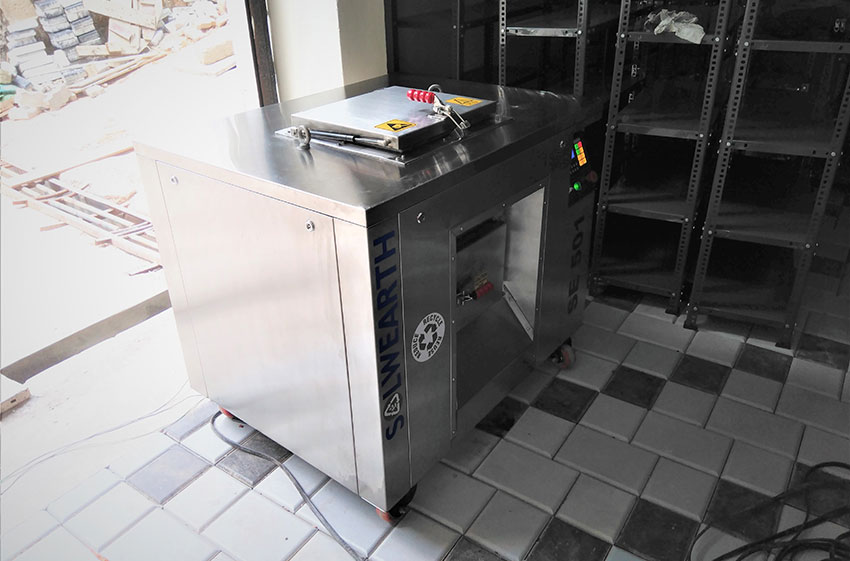

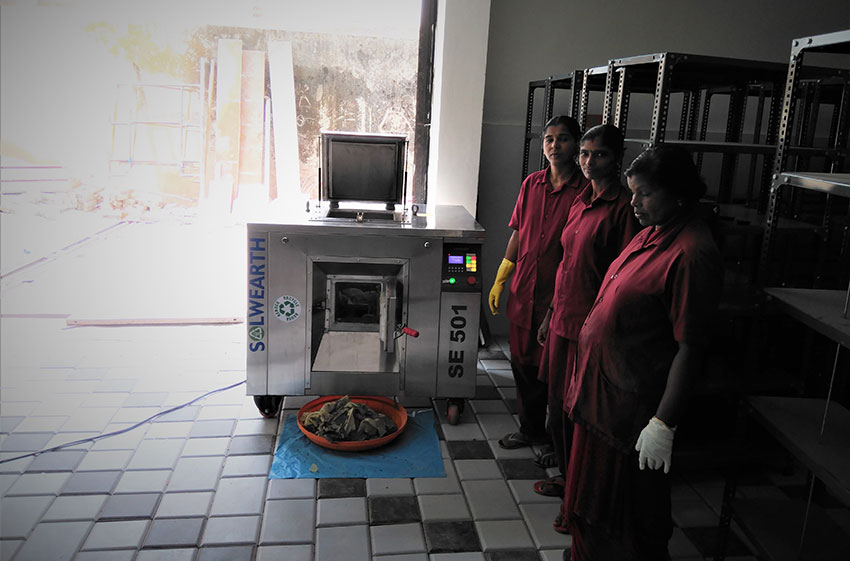

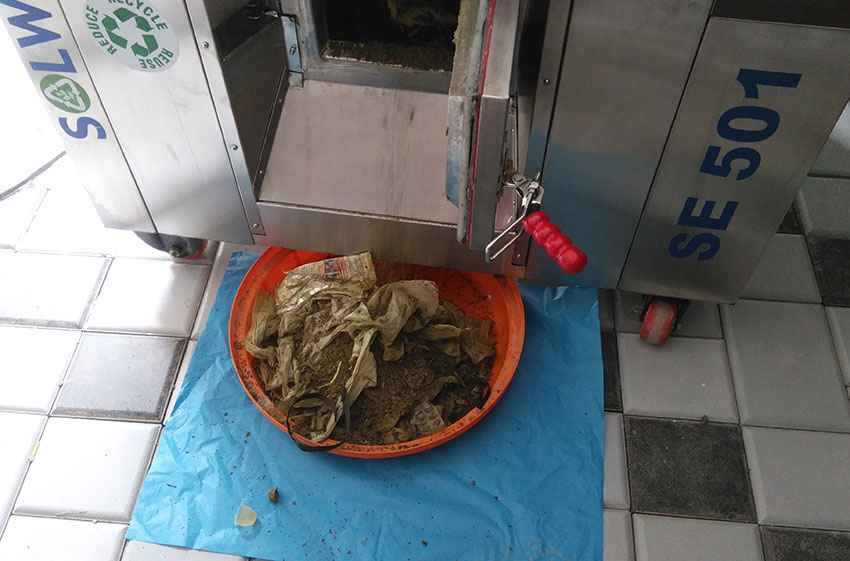

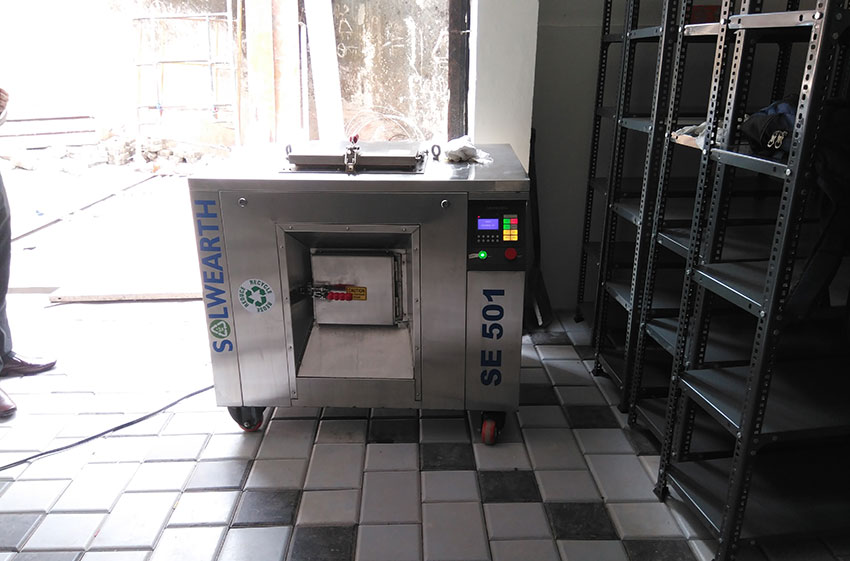

Gokulam Medical Center (Hospital Canteen)

NEED:

Around 50 Kg food waste to be converted daily
Already had a biogas plant installed but was having issues with it.

CHALLENGE:

Space constrain
Biogas plant was using up space which could be used for other utilities
Existing biogas plant was producing smell and was causing issue in the premises
Waste segregation was required among organic waste for processing in biogas plant
Man power issues for segregating organic waste

SOLUTION:

We gave our 50Kg machine to solve the problem
Our machine uses only 1m2 space
No waste segregation is required in our machine
Time taken for our process was only 12 hours which was attractive for them

RESULT:

Output can be used as soil supplement
Waste was processed in our machine without any smell or sound
Environment friendly
Easy solution in small space

We have been using a biogas plant for a few years now. We had to spend a lot of manpower and floor space to keep that system running. The foul smell from it was reaching the customers and was affecting the running of our hospital. We needed a practical alternative. And Solwearth provided exactly what we were looking for. Their product needs just 12 hours to process and there was no need for any segregation among organic waste. Taking just 1m2 space this machine is a dream come true for us. We are very happy with it. We were able to cut down manpower costs and cleared out a lot of floor space that we could use now. Now we relocated the machine to our terrace as there were no hard wiring or plumping requirement for this machine. Go for Solwearth, they won’t disappoint. -Gokulam Hospitals

K R Bakes (Small Scale Restaurant)

NEED:

Small scale restaurant and has very less space to spare for waste processing
Around 50 Kg food waste to be converted daily

CHALLENGE:

Space constrain
Waste segregation was required for almost all other waste processing machines
Man power issues for segregating organic waste
No smell should come from the machine as customers will be sitting nearby

SOLUTION:

We gave our 50Kg machine to solve the problem
Our machine uses only 1m2 space
No waste segregation is required in our machine
Time taken for our process was only 12 hours which was attractive for them

RESULT:

Output can be used as soil supplement
Waste was processed in our machine without any smell or sound
Environment friendly
Easy solution in small space

Food waste management was always a constant source of headache for us. We were actually on the search for a system that could confine to our space constraints and doesn’t cause any inconvenience for our customers. Work in the bakery industry needed clean and odour free environment. The odour was the greatest concern of all, for us. Solwearth had the perfect solution made ready for us in the form of their 50kg model. From a constant headache, the food waste management in our bakery and hotel networks suddenly turned into a hassle-less experience. The KR group is very much delighted by the performance, quality and service offered by Solwearth. -KR Bakes

Asset Builders (Apartment)

NEED:

Apartment which is already using a bacteria based machine and looking for a replacement
Bacteria based machine was making too much smell, and was facing service issue
Also when water content was more the bacteria would die so they needed to add more bacteria in that case
Around 50 Kg food waste to be converted daily

CHALLENGE:

Space constrain
Waste segregation was required for almost all other waste processing machines
Man power issues for segregating organic waste
No smell should come from the machine as it is an apartment

SOLUTION:

We gave our 50Kg machine to solve the problem
Our machine uses only 1m2 space
No waste segregation is required in our machine
Time taken for our process was only 12 hours which was attractive for them
As they had space issues we set up our machine on the terrace
We dismantled our machine and reassembled at the location terrace

RESULT:

Output can be used as soil supplement
Waste was processed in our machine without any smell or sound on their terrace
Environment friendly
Easy solution in small space

The bacteria-based waste processors that were already in use in our buildings developed a strong stench over time and families started complaining about it. Added with costs involved with segregation the whole system became uneconomical for us. Solwearth’s 50kg food waste processor has proved itself to be a reliable and economical alternative to us. They installed the product on our rooftop taking just 1 Sq Mt of floor space. Now there is no problem of foul smell and the running costs have come down considerably. We started using Solwearth products in all our existing and future projects. -Asset Homes
